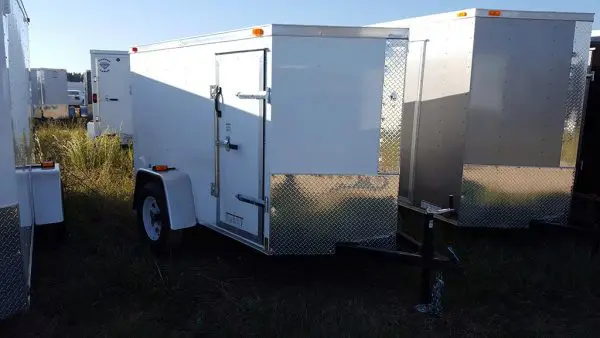

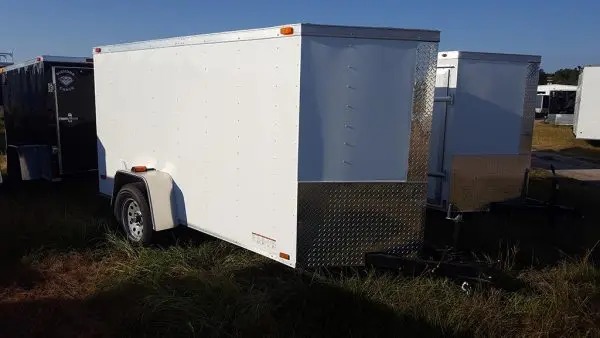

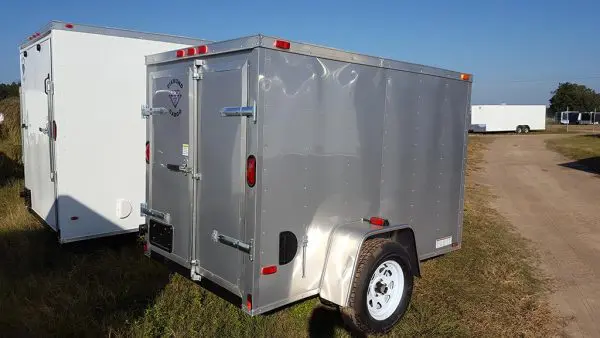

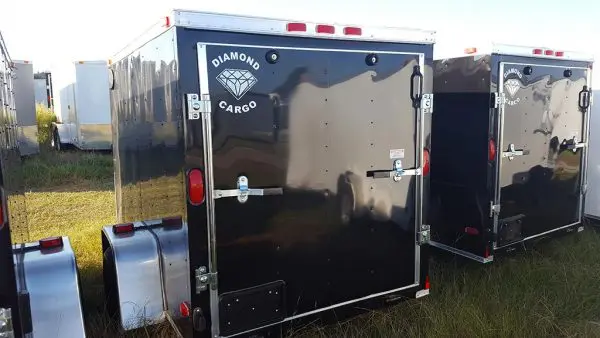

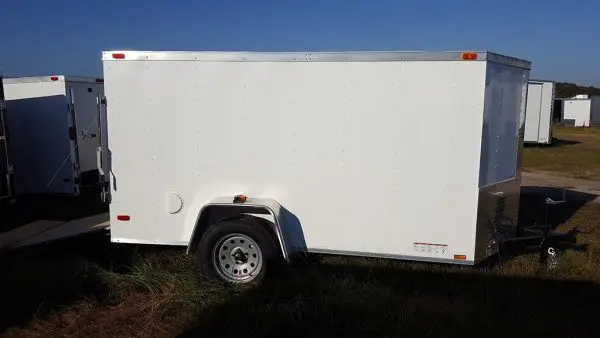

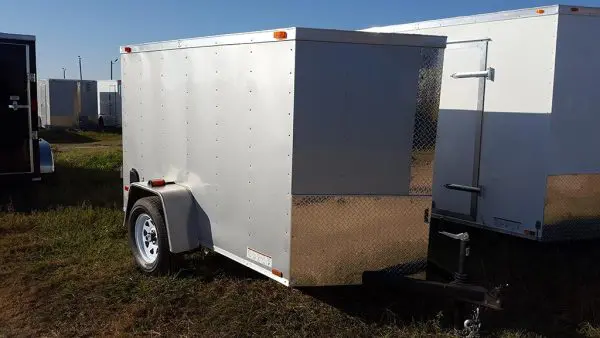

2024 Diamond Cargo 5' x 8' V Nose Cargo

2024 Diamond Cargo 5' x 8' V Nose Cargo

Features:

• 5-Year Factory Warranty
• 1.5” Tube Steel Sidewalls & Roof Members
• Your Choice of SIX Colors with Matching Exterior Screws

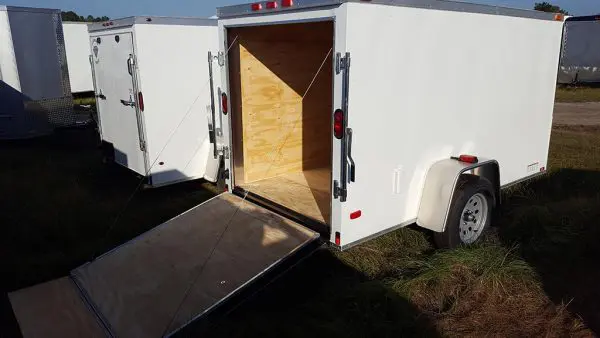

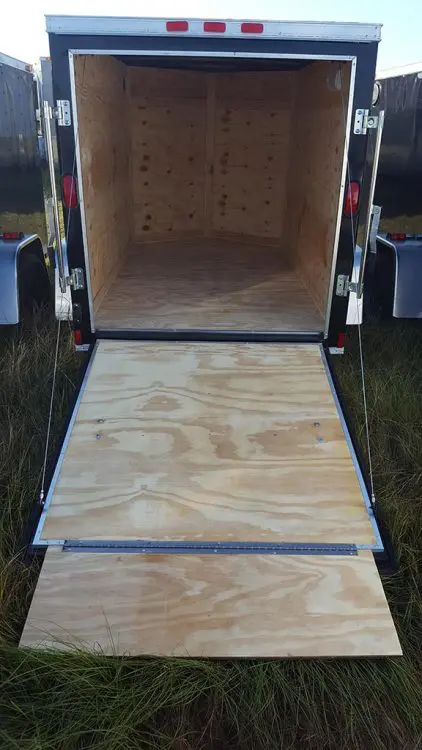

• Heavy-Duty Spring Assisted Rear Ramp Door with Flap or Double Doors
• Ramp has 2,500 lb. Standing Weight & 3,500 lb. Rolling Capacity

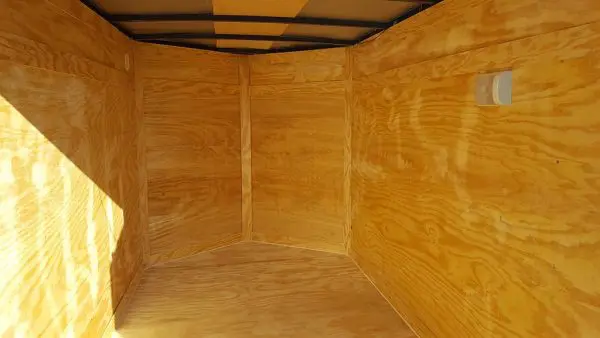

• Standard Interior Height 60” (5’ 0”) with Rear Opening Height of 57” (4’ 9”)
• Interior Length: 8’ Box with 2’ Additional V-Nose
• 4’9” Interior Width
• Overall Height Is 80.5” Without Vent
• 49.5” Rear Opening Width
• Single 3500# USA-made Lippert Axle (Rated at 2990# for DOT)
• Exterior Grade Plywood Flooring
• 3” Tubular Steel Main Frame Rails
• 24” On-Center Cross (Floor) Members
• 24” On-Center Roof Members – STRONG TUBULAR STEEL
• 16” On-Center Sidewalls – STRONG TUBULAR STEEL
• Triple Rear Lighting, All Lighting DOT Approved
• 15” Radial Tires (ST205) Load Range C Silver Modular Rims
• High Tech Undercoating Frame Paint
• ¾” SUPERIOR GRADE Plywood Flooring with No Show Beaver Tail
• 3/8” SUPERIOR GRADE Plywood Walls
• Premium Grade Aluminum Exterior with Baked Enamel Finish with Matching Exterior Screws
• Galvalume Roof with High Tech Sealant with Center Luan Strip
• SLIGHTLY ROUNDED FOR WATER AND SNOW RUNOFF
• ATP ( Aluminum Tread Plate) Covered Step Well
• 4-Way Flat Plug Connector with Break-Away Kit with Battery
• 2” Coupler on A-Frame Draw Bar with Heavy Duty Safety Chains
• 2,000 lb. A-Frame Jack with Sand Foot
• Aluminum Tear Drop Fenders
• E-Z Lube Hubs with Grease Cap – Easy to Maintain!
• Covered License Plate Bracket with Light
• 12 Volt Dome Light
• 24” Aluminum Tread Plate (ATP) on Front
• Drop Axles (Lowers Trailer about 4″)
• Axle Capacity: 2990 lbs. less Gross Weight of Trailer: 900 lbs.= Payload Capacity of Trailer: 2090 lbs.
