2022 Trail-EZE TE501RR

2022 Trail-EZE TE501RR

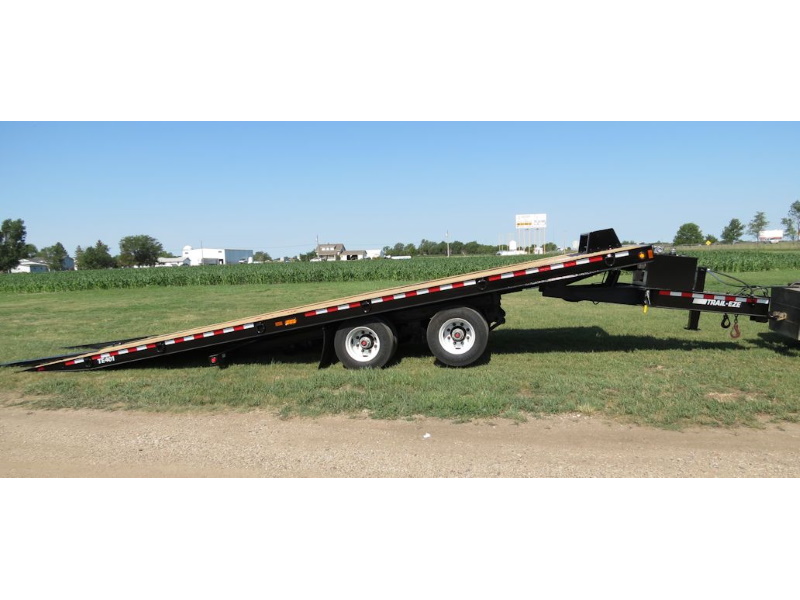

When hauling railroad equipment, safety is our #1 priority!!  TRAIL-EZE's Sliding Axle Trailer line is not only safe, but it is reliable and easy to load.  With a 6 1/2 degree load angle on our 53' long trailer, there is no need for heavy ramps or lifting, and with a winch located on the upper deck, you will never have to worry about geting a piece of equipment loaded.  Offered in 20 Ton, 25 Ton, 35 Ton, 40 Ton and 55 Ton capacities (TE401RR, TE501RR, TE701RR, TE801RR & TE1101RR) with endless options, TRAIL-EZE will make your next purchase an easy one!!

For the TRAIL-EZE "SLIDE AXLE SERIES (01)" and "CONTAINER FRAME SERIES" trailers manufactured after January 01, 2017, come with a Limited 10-Year Warranty on the original POLY slider pads and POLY scissor neck pin bushings that exceed 1/8" of normal wear.

Competitors using grease style pins and rollers require frequent maintenance and can be a hassle getting to them, not to mention just plain messy.  By eliminating the hassle of greasing, customers appreciate the benefit and value of reduced maintenance provided by the POLY pads and bushings.

Features may include:

• FRAME : High tensile steel I-beam main frame and crossmembers
• DECK : 2" Oak decking
• LOAD ANGLE : 8 Degrees
• PINTLE HITCH : 3" ID Adjustable
• CYLINDERS : (2) Tilting cylinders - (1) Sliding cylinder
• AXLES : (2) 20,000 Lb capacity
• BRAKES : 12 1/4" x 7 1/2" with S-Cam air auto slack adjusters, ABS, spring brakes and outboard drums
• WHEELS : (8) 6.75 x 17.5 HP 8-hole steel
• TIRES : (8) 235/75R x 17.5 HRT 16-Ply Generals
• SUSPENSION : H-9700 Spring
• TIE DOWNS : 6 per side
• SAFETY CHAINS : 1/2" with hooks
• ELECTRICAL : ICC D.O.T. Sealed LED light system and reflector kit
• PAINT : Trailer sandblasted, primed and painted
• WARRANTY : Limited 5 Year Major Structural Warranty
• TONGUE JACK : 2-Speed, 16,000 Lb, 35,000 Lb static

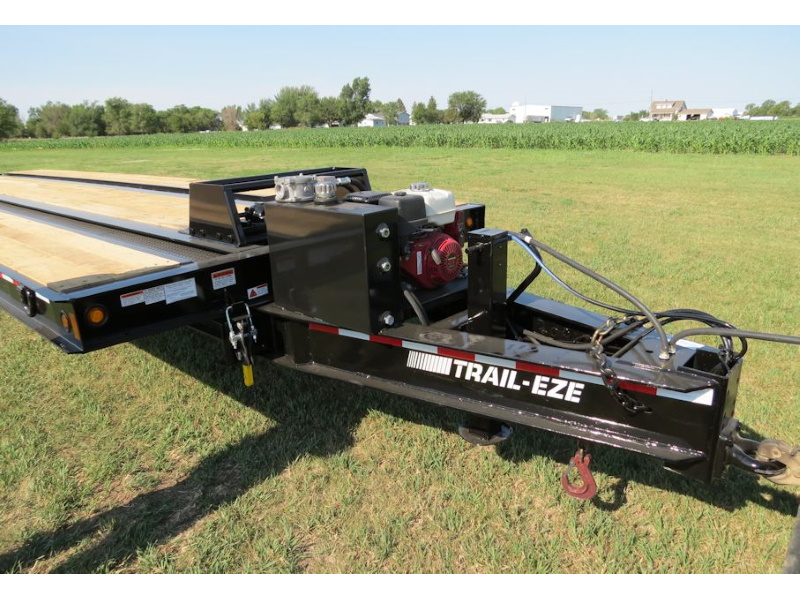

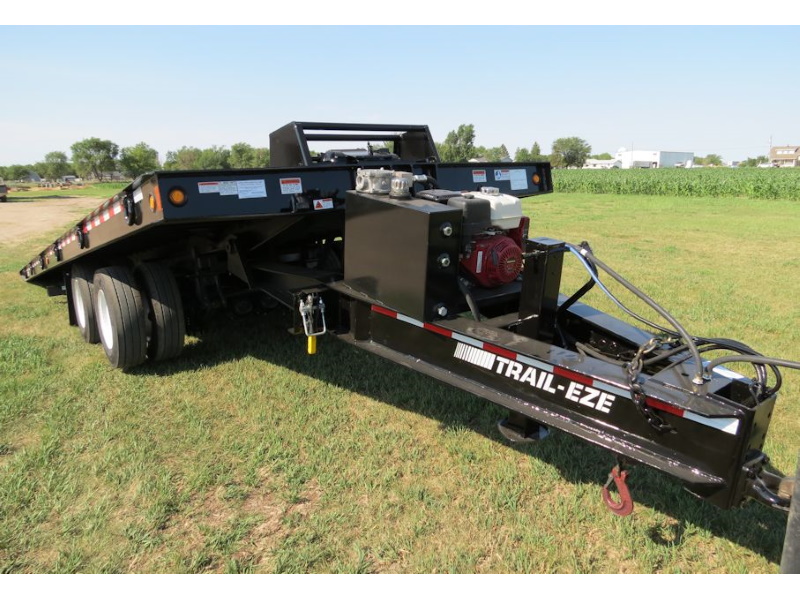

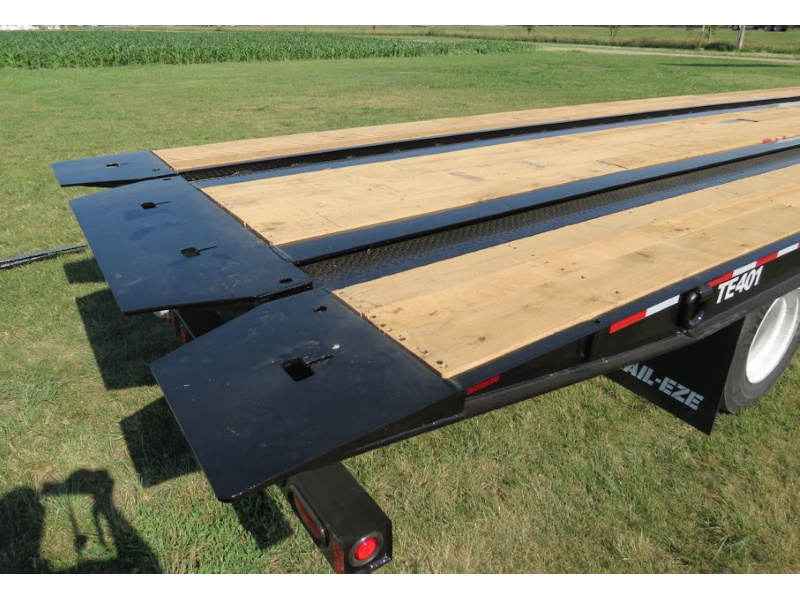

• OPTIONS : 2" x 2" Solid rail in main bed - Special rail ramps to assist in loading and unloading rail equipment - 13HP Honda Self-contained mounted in tongue to run winch, axle slide and bed tilt - Flag holders at rear of trailer - I-beam crossmembers on 12" centers - Knife edge to be notched out for easy loading of rail equipment
