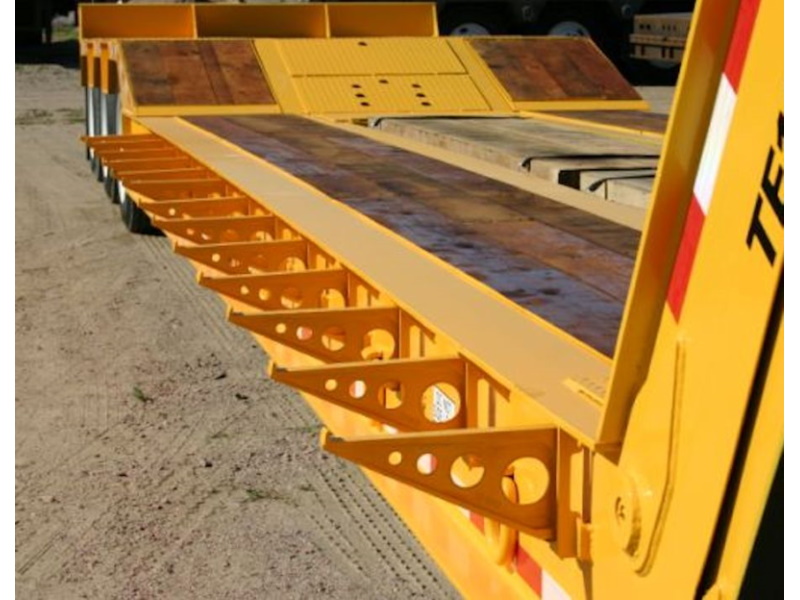

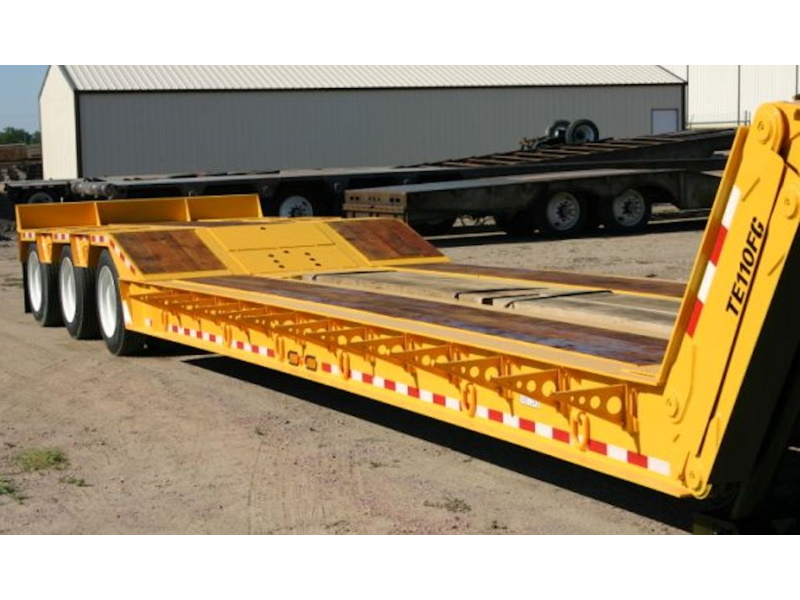

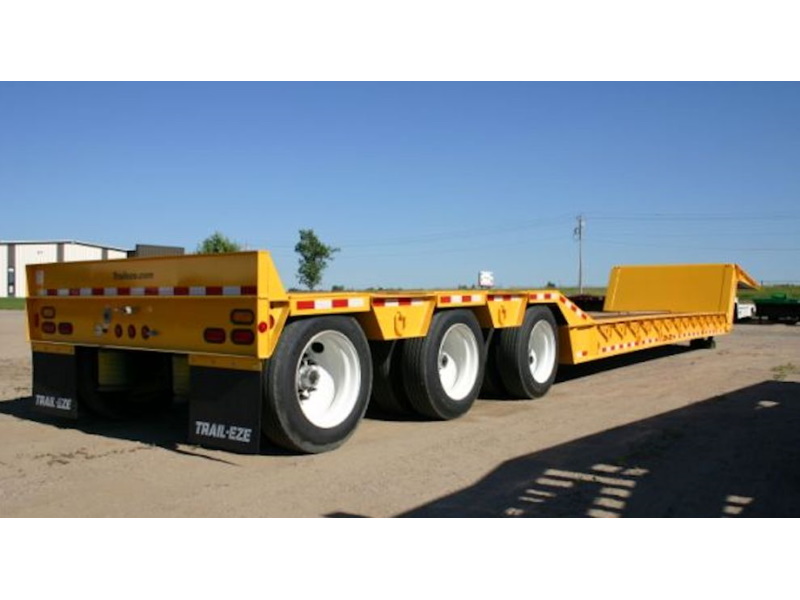

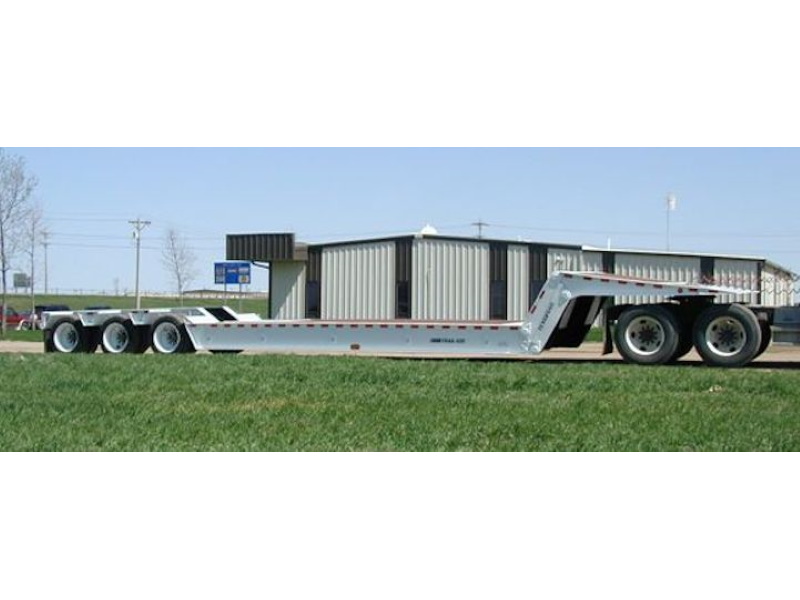

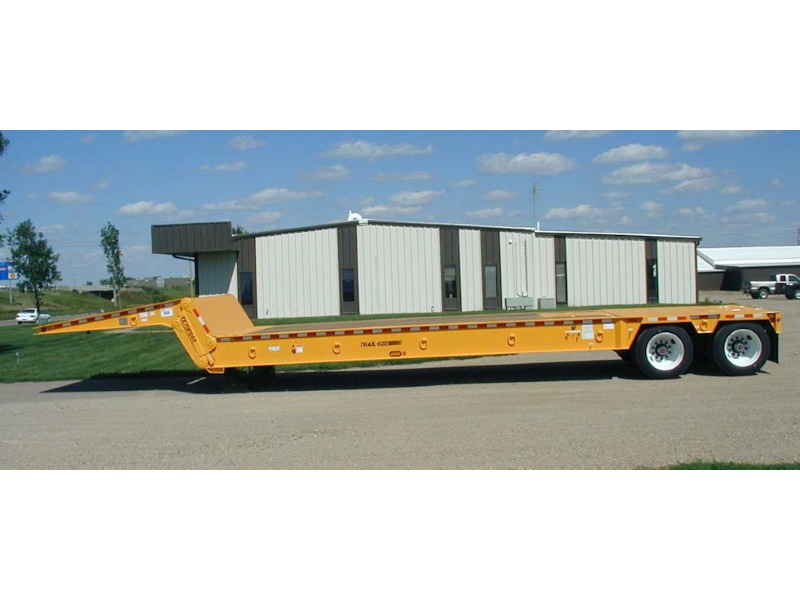

2022 Trail-EZE TE70FG

2022 Trail-EZE TE70FG

The  Folding Gooseneck is coming back.  A trailer that was the "go-to" in the early days, is making a major comeback.  Contractors hauling multiple pieces of equipment requiring a low load angle, have asked for many different options to make it the revisited "go-to" trailer.  TRAIL-EZE Trailers has been working with the Railroad and Paving Industries, as well as Government and Military entities, for many years to perfect the design.

Features may include:

• FRAME : All high tensile steel. Custom manufactured beams designed for stress loads at a minimum of a 2:1 safety factor.

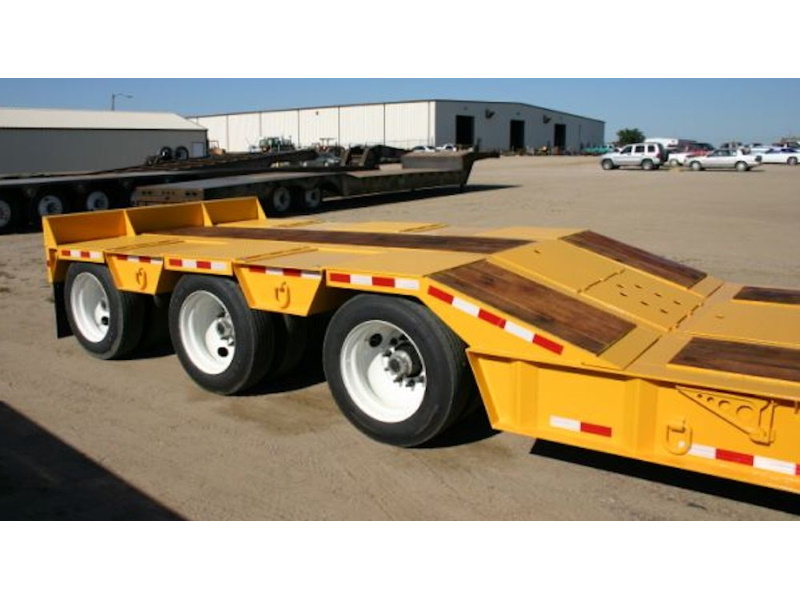

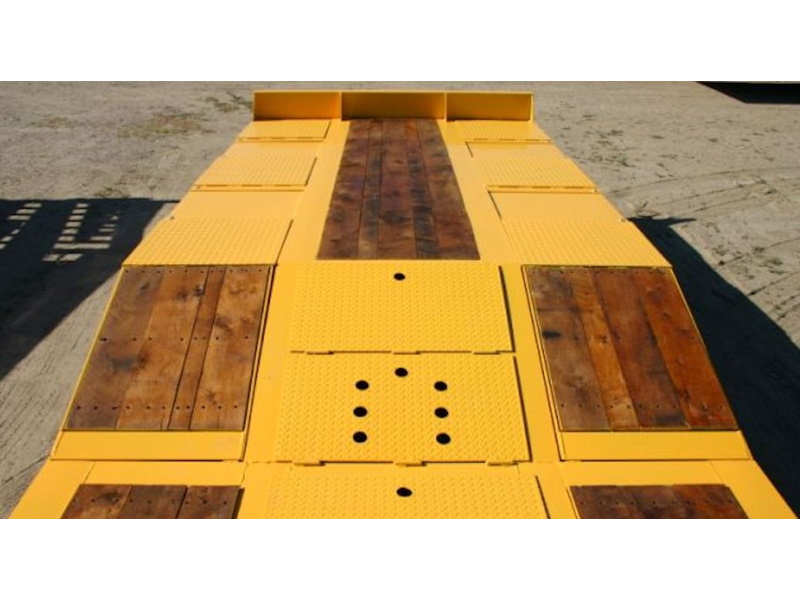

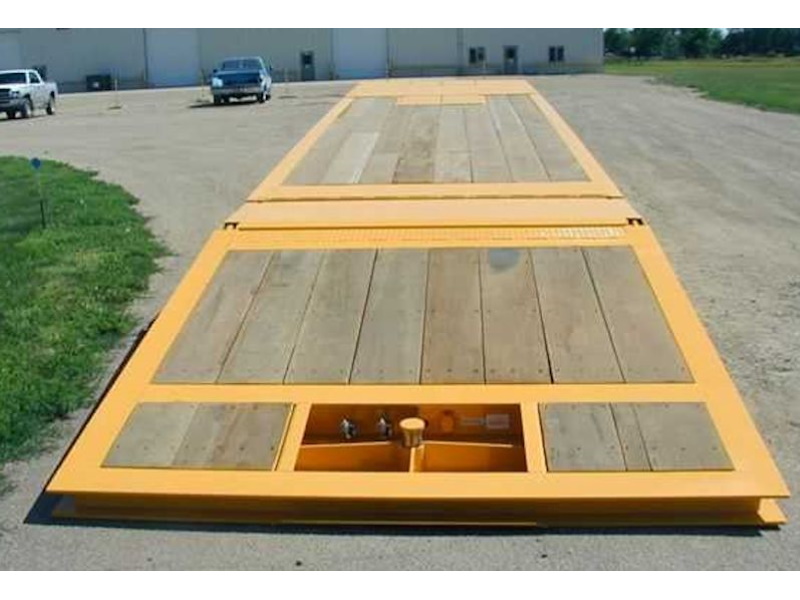

• DECK : 2" Oak decking attached to crossmembers with two torx head screws. Load bearing wheel bolsters between each axle.

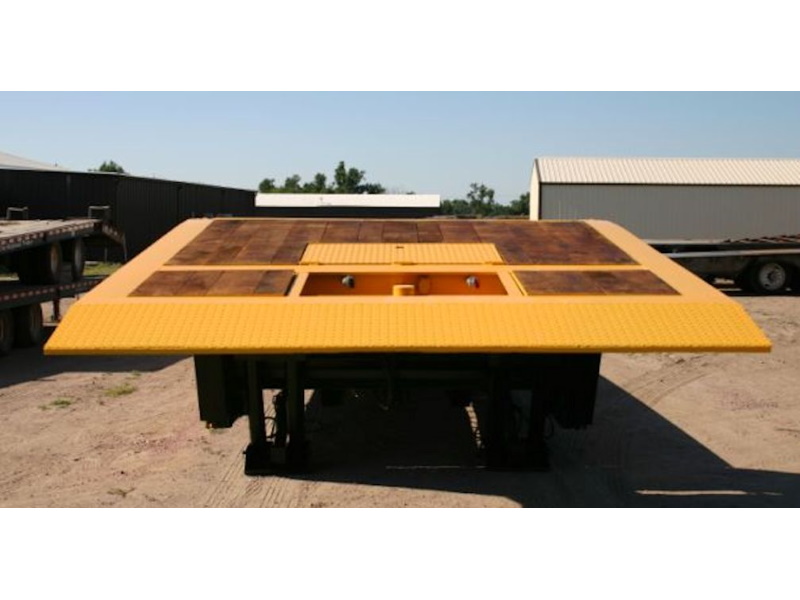

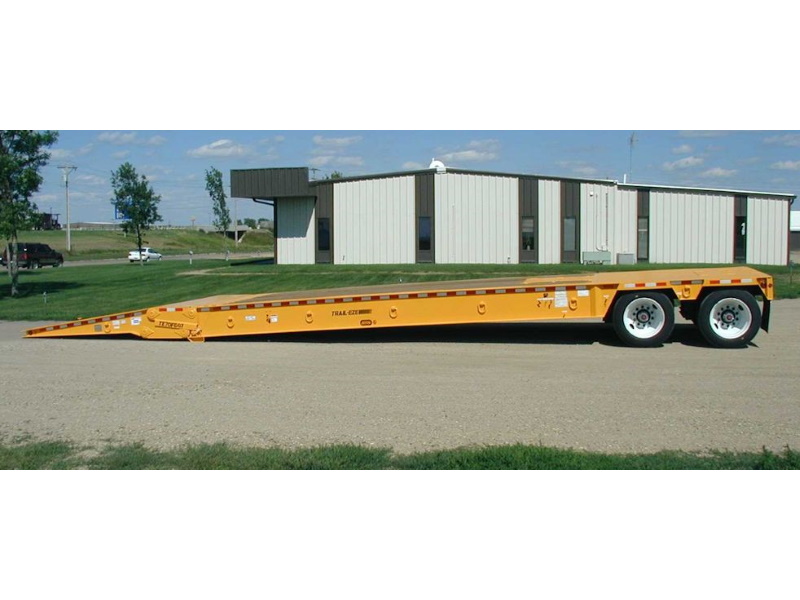

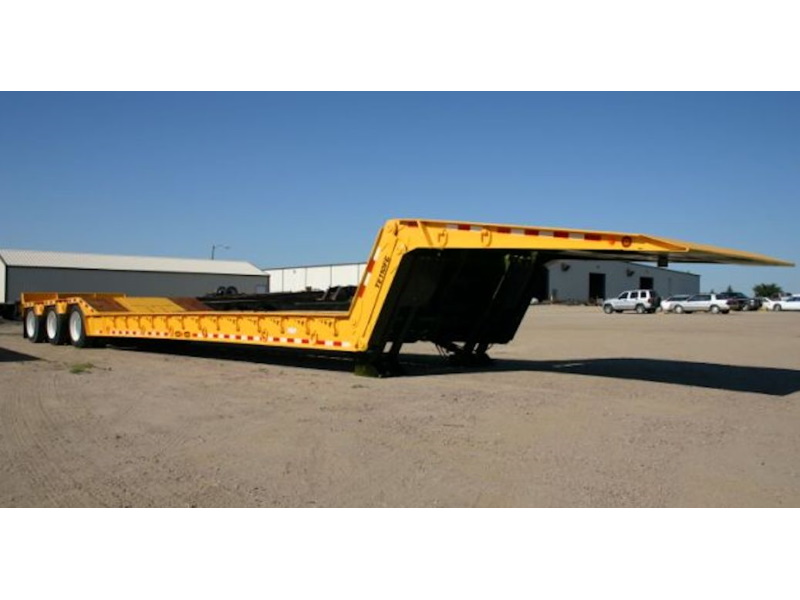

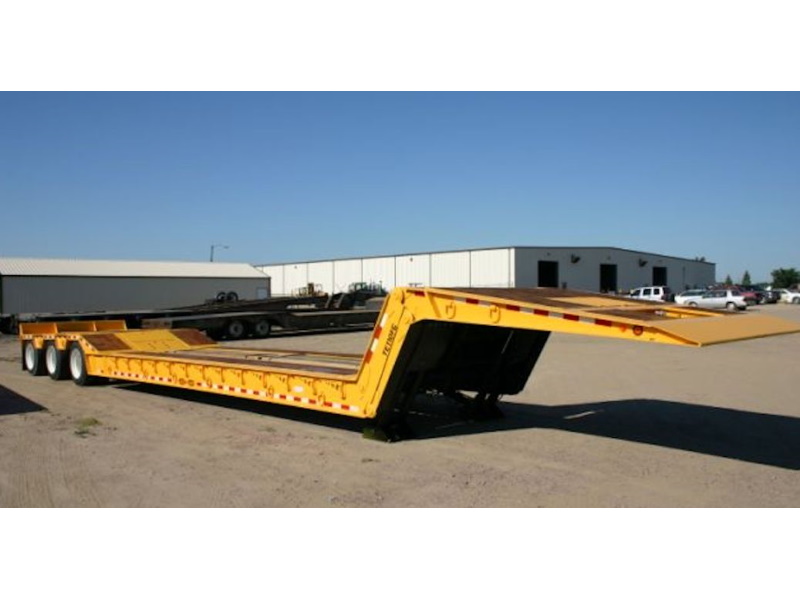

• FOLDING NECK : Twin arm folding neck, allows full length of neck to lay on the ground. Arms pivot around free floating steel pins which are able to rotate with either the arms or the main trailer structure.
• LOADING PINS : Safety pin is located in the arms to hold trailer in an upright position when not supported by a towing vehicle. Also, to help dampen "fore and aft" oscillation when empty.
• AXLES : 25,000 Lb
• BRAKES : 16 1/2" x 7" Air, outboard drums
• WHEELS : 8.25 x 22.5 Disc pilot mounted
• TIRES : 255/70R x 22.5 Low profiles
• SUSPENSION : Air ride with dump
• TIE DOWNS : 5 Per side of deck bed and one on each bolster

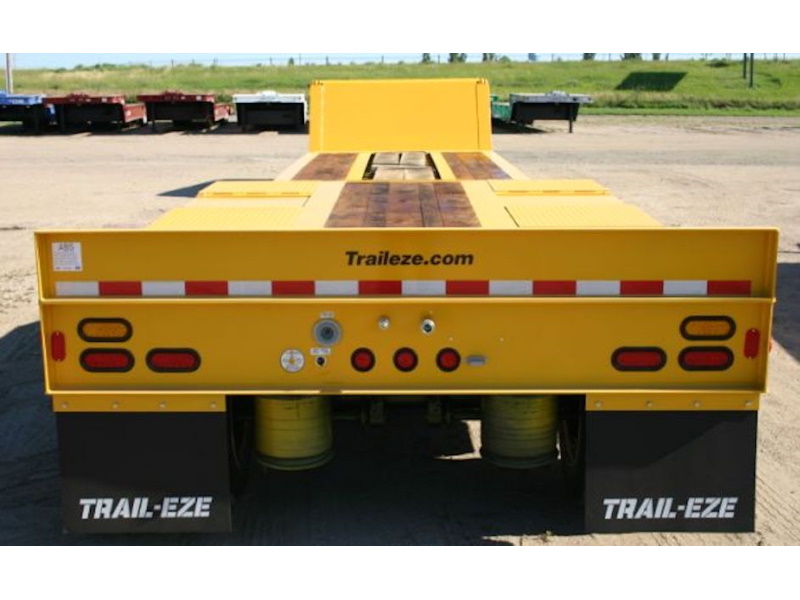

• ELECTRICAL : ICC D.O.T. Sealed beam light and reflector kit
• PAINT : Trailer sandblasted, primed and painted
• WARRANTY : Limited 5 Year Major Structural Warranty
• OPTIONS : Many Options Available
