    Description

    2022 Trail-EZE TE801RR

    When hauling railroad equipment, safety is our #1 priority!! TRAIL-EZE's Sliding Axle Trailer line is not only safe, but it is reliable and easy to load. With a 6 1/2 degree load angle on our 53' long trailer, there is no need for heavy ramps or lifting, and with a winch located on the upper deck, you will never have to worry about geting a piece of equipment loaded. Offered in 20 Ton, 25 Ton, 35 Ton, 40 Ton and 55 Ton capacities (TE401RR, TE501RR, TE701RR, TE801RR & TE1101RR) with endless options, TRAIL-EZE will make your next purchase an easy one!!

    For the TRAIL-EZE "SLIDE AXLE SERIES (01)" and "CONTAINER FRAME SERIES" trailers manufactured after January 01, 2017, come with a Limited 10-Year Warranty on the original POLY slider pads and POLY scissor neck pin bushings that exceed 1/8" of normal wear.

    Competitors using grease style pins and rollers require frequent maintenance and can be a hassle getting to them, not to mention just plain messy.  By eliminating the hassle of greasing, customers appreciate the benefit and value of reduced maintenance provided by the POLY pads and bushings.

    Features may include:

    • FRAME : All high tensile steel I-beams. 4 Beam design.
    • DECK : 1 1/2" Oak decking with crossmembers on 12" centers
    • LOAD ANGLE : 6 3/4 Degrees

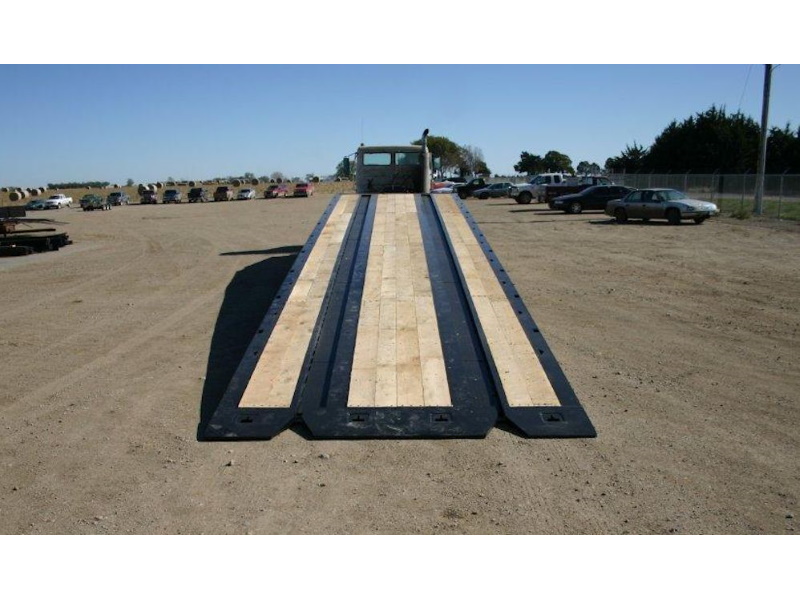

    • APPROACH RAMP : Steel knife edge
    • AXLES : (2) 25,000 Lb with spread axle option - closed tandem to a 10'-2" spread
    • BRAKES : 12 1/4" x 7 1/2" S-Cam air brakes. ABS with auto slack adjusters and spring brakes on all axles (4S/2M)
    • WHEELS : (8) 6.75 x 17.5 10-Hole steel disc
    • TIRES : (8) 235/75R x 17.5
    • LANDING GEAR : 2-Speed landing gear
    • SUSPENSION : Air ride
    • TIE DOWNS : Stakepockets and Chain Slots alternating on 2' centers with (4) Gotcha's across the rear
    • WINCH : 20,000 Lb Hydraulic with cord type remote control
    • ELECTRICAL : ICC D.O.T. standard sealed light system with mid-ship turn signal
    • PAINT : Trailer sandblasted, primed and painted
    • WARRANTY : Limited 5 Year Major Structural Warranty

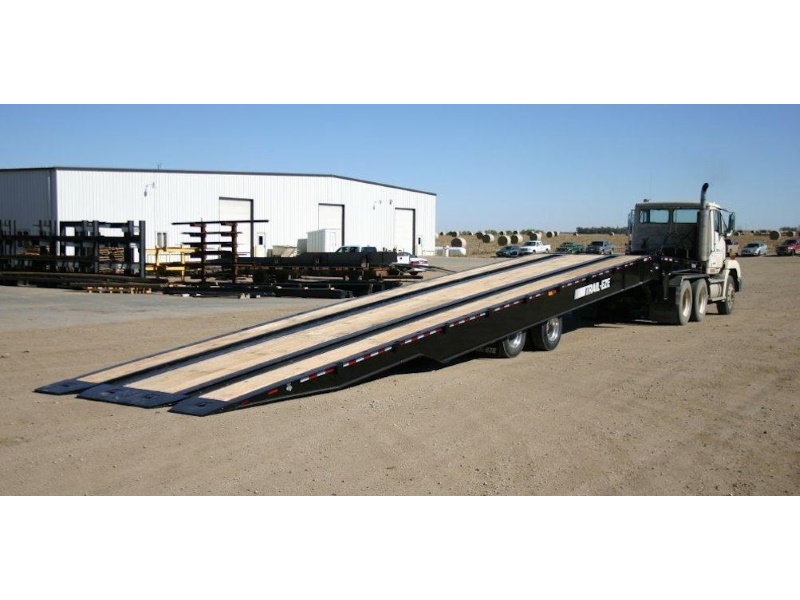

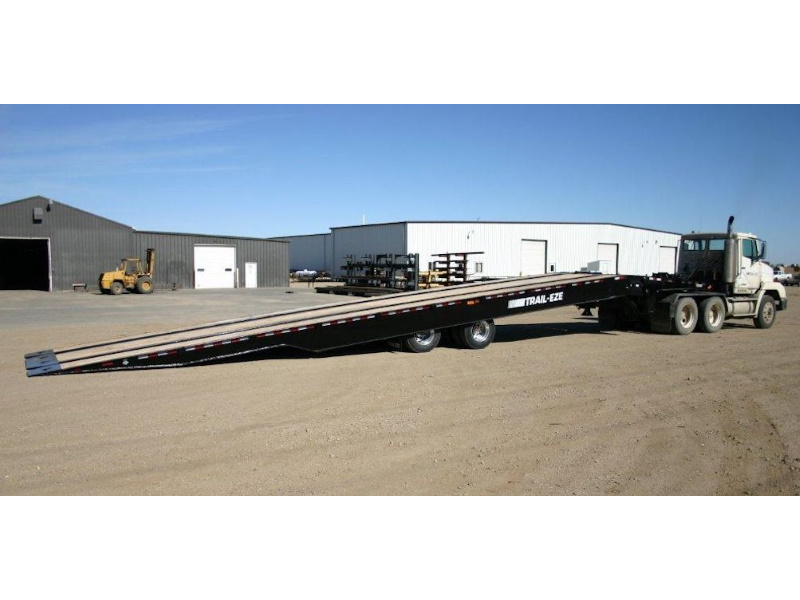

    • OPERATION : The main bed is tilted hydraulically and the hinged slope forms a straight ramp to the upper deck which remains flat on the fifth-wheel at all times.
    • OPTIONS : 2" x 2" Solid railroad rail lower deck - V-Neck in knife edge to rails - 10 Gauge floor plate troughs each side of rails

    Info

    Industry

    Trailer

    Make

    Trail-EZE

    Model

    TE801RR

    Trim

    Base

    Year

    2022

    MSRP

    N/A

    Category

    Semi Trailer

    Subcategory

    Drop Deck Trailer


    Specs

    Length

    53'

    Width

    8'-6"

    Frame

    All high tensile steel I-beams. 4 Beam design.

    Axles

    (2) 25,000 Lb with spread axle option - closed tandem to a 10'-2" spread

    Brakes

    12 1/4" x 7 1/2" S-Cam air brakes. ABS with auto slack adjusters and spring brakes on all axles (4S/2M)

    Wheels

    (8) 6.75 x 17.5 10-Hole steel disc

    Tires

    (8) 235/75R x 17.5

    Suspension

    Air ride

    Electrical

    ICC D.O.T. standard sealed light system with mid-ship turn signal

    Warranty

    Limited 5 Year Major Structural Warranty
